Tech. Spec. Info :
Termál; 150 mm/sec.; 112 / 80mm; Robosztus, strapabíró, beépíthető kioszk-nyomtató automata vágóval. Opcióban rendelhető: tápegység (PS60A), 25cm papírtekercstartó (RHUT900), interfész párhuzamos(IF-BDHC04) soros(IF-BDHD04) USB(IF-BDHU04) Ethernet(IF-BDHE06).
Star TUP900 Kiosk Printer gyártói weboldalStar TUP900 Kiosk Printer
Műszaki adatok

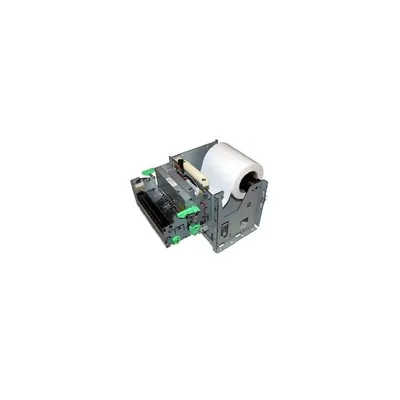

Modell: TUP942-24 112m Kiosk, Thermal, Friction, 2 Color, Cutter, No Presenter, Ext PS
Printer MethodDirect Line Thermal
Print Speed150 mm/sec
Print Resolution203 dpi (8 dots per mm)
Top Margin15mm (3mm Selectable)
International Code PagesStar Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
Bar CodesUPC-A, UPC-E, JAN/EAN-8 JAN/EAN-13, ITF, CODE39, CODE93, CODE128, CODABAR
Paper SpecificationsWidth
58 mm Min to 112 mm Max
Thickness
0.065 ~ 0.15 mm
Roll Diameter
Up to 6” Standard / 7” – 10” Option (Using RHU-T900 Large Paper Roll Holder)
Easy-Load
"Drop-In & Print"
Paper Out Sensor
Standard
Paper Low Sensor
Standard
Black Mark Sensor
Standard
Logo Store Capacity2 Mbit
Multiple Copy SupportSupported through 2nd Copy Raster Driver
Journal CapabilityN/A
Label SupportTUP942 Only
Power SupplyExternal; Requires PS60A External Power Supply
Drivers AvailableWindows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO, Scalable Raster Driver
Digitally Signed (WHQL)N/A
Swappable InterfacesYes
ConnectivitySerial, Parallel, USB
Emulation ModesStar Mode, ESC/POS™
Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 Compulsion input
Operating ConditionsTemperature: 0oC to 50oC
Humidity: 10% - 80% RH (without condensation)
Storage ConditionsTemperature: -20oC to 60oC
Humidity: 10% - 90% RH
TUP992 DimensionsWeight192(W) x 179(D) x 249.3(H) mm
2.84 kg
Safety StandardsCE, FCC, VCCI, EN55022
Reliability MCBF37 Million Lines
Print Head100km
Auto Cutter1 Million Cuts
Warranty3 Year Limited Manufacturer Warranty (US and Canada)
OptionsExternal Power Supply (PS60A)
TUP942 Presenter Unit (PR900)
Large Paper Roll Holder (RHU-T900)
Thermal Printer Mechanism (TMP942)
