Alaplap Z97 LGA1150 4xDDR3 Gigabyte Z97X ATX GA Z97X SLI Technikai adatlap

Tech. Spec. Info : Gigabyte Z97X-SLI skt1150 (Z97, 4xDDR3 3000MHz, RAID, 2xPCI-E, 1xGBE LAN, 6xSATA3, 8xUSB2.0, 6xUSB3.0)

Gigabyte Z97X-SLI alaplap gyártói weboldal

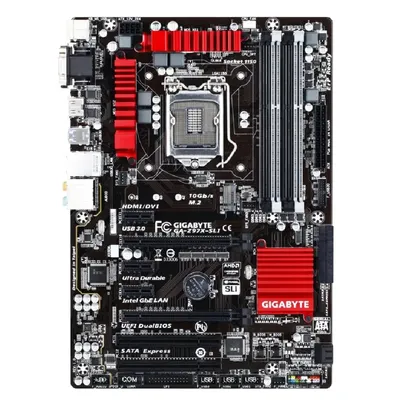

Gigabyte Z97X-SLI alaplap

Műszaki adatok

Processzor
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
Az L3 gyorsítótár mérete processzorfüggő
Please refer "CPU Support List" for more information


Lapkakészlet
Intel® Z97 Express Chipset


Memória
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Kétcsatornás memória
Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
nem-ECC memóriamodulok támogatása
XMP (Extreme Memory Profile) memóriamodulok támogatása
*Please refer "Memory Support List" for more information


Alaplapi grafikus vezérlő
Integrated Graphics Processor:
Maximum shared memory of 512 MB
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
* Support for HDMI 1.4a version.
Support for up to 3 displays at the same time


Audio
Support for S/PDIF Out
HD audió
2/4/5.1/7.1 csatorna
Realtek® ALC1150 codec


Hálózati vezérlő
Intel® GbE LAN chip (10/100/1000 Mbit)


Bővítőhelyek
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
2 x PCI slots


Multi Graphics Technology
Support for 2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology


Storage Interface
Lapkakészlet:
1 x M.2 PCIe connector
(Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
1 x SATA Express connector
6 x SATA 6Gb/s connectors
(M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
Support for RAID 0, RAID 1, RAID 5, and RAID 10


USB
Lapkakészlet:
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)


Belső csatlakozók
1 x párhuzamos csatoló
1 x water cooling fan header (CPU_OPT)
1 x SATA Express connector?
1 x M.2 PCIe connector
1 x 8 tűs ATX 12V tápcsatoló
3 x rendszerventilátor csatoló
1 x CPU fan header
1 x front panel header
1 x 24-pin ATX main power connector
1 x front panel audio header
1 x USB 3.0/2.0 header
1 x serial port header
1 x Clear CMOS jumper
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
6 x SATA 6Gb/s connectors


Hátlapi csatlakozók
1 x RJ-45 port
2 x USB 2.0/1.1 ports
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
1 x HDMI csatoló
1 x PS/2 keyboard/mouse port
4 x USB 3.0/2.0 ports
1 x D-Sub port
1 x DVI-D port
I/O vezérlő lapka
iTE® I/O Controller Chip


Hardver monitorozás
CPU/CPU OPT/System fan speed detection
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control
CPU/Rendszerhőmérséklet érzékelés
Feszültségszintek érzékelése
CPU/System overheating warning
*Whether the fan speed control function is supported will depend on the cooler you install.


BIOS
2 x 64 Mbit flash
Support for DualBIOS™
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Egyéb tulajdonságok
Support for Q-Flash
Support for Xpress Install
Support for Smart Switch
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
On/Off Charge funkció támogatása
@BIOS™
Support for EZ Setup
Support for Smart Recovery 2
EasyTune
USB Blocker
Smart TimeLock
Fast Boot
System Information Viewer


Ajándék szoftver
Intel® Smart Response Technology
Intel® Rapid Start Technology
Intel® Smart Connect Technology
Norton® Internet Security (OEM version)


Operációs rendszer
Support for Windows 8.1/8/7


Méretszabvány
ATX Form Factor; 30.5cm x 21.4cm


Megjegyzések
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Az eltérő Linux verziók támogatottsága miatt kérjük, hogy a lapkakészlet meghajtóprogramját közvetlenül a lapkakészlet gyártójának honlapjáról töltse le.
